Westinghouse, Simpson Selector Switch - Part # 85805340017151

Westinghouse, Simpson Oven Selector Switch.

Genuine Part No. 85805340017151, Ego part no. 46.23866.543.

Replaces Part No. 0534001715, 534-1-715.

5 position oven function select switch used in some late model ovens. Suits some Westinghouse & Simpson models including POL660, POL662, 63G904, 63G906, 63H906 & others.

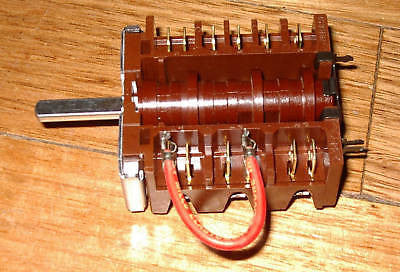

6mm D-Shaped shaft. 6 cam banks, 6 SPST switches in three groups. Front bank is separate but linked to bank 3 by an external linkwire. Next 3 banks are linked. Last 2 banks are linked.

This switch is located in front of the oven thermostat and the 2nd last position covers the entire 270degrees of the thermostat travel.

Functions of the various positions are 0 - Off, 1 - Light, 2 - Defrost, 3 - Fan Bake, 4 - Grill.
