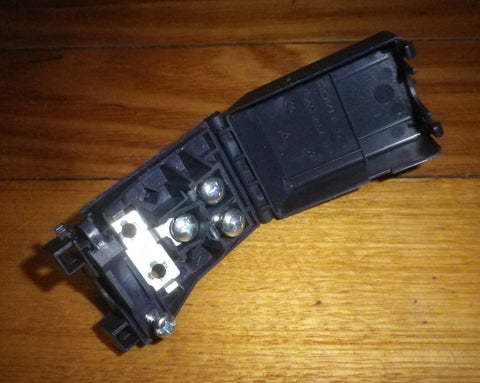

Kleenmaid, Delonghi, Blanco Mains Power Inlet Terminal Block for Stoves & Ovens.
Part No. FP581457P, 581457P, SL200B.
Replaces Part Nos. PA244S, 533061, FP533061.
Similar to Part Nos. DL051046, DEL-051046, 040408009901R, 12530000, ME12530000.

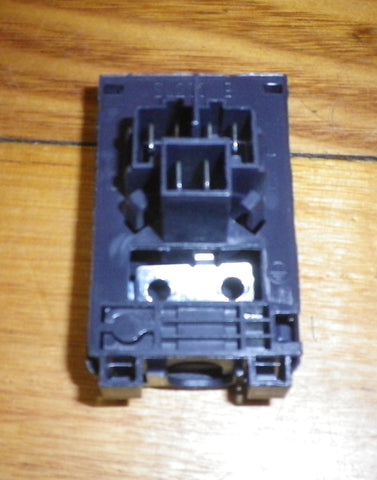

3 way Nova terminal block with screw terminal one side and two 6.4mm spade terminals on each link on the other side.
Suits many Delonghi, Fisher & Paykel, Omega, Smeg & Kleenmaid ovens including models CH300CW, CH300CX, CB302CBX1, CB302CBX2, OB60SCEW2, OB60SLMFX4, 76X3879, TO54W, TO54X, TO56W, TO56X, GN667777, TO100W, TO100X, TO200W, TO200X, TO201, TO300W, TO300X, TO400A, TO400W, TO400X, TO500A, TO500X, TO601, TO600A, TO600X, TO401X, DE60MW, BFS95F, BSF95FFF, BFS95W, BFS95WB, BFS95WCR, BFS95WFF, BOSE67M, BMS604, BMS604W, BMS610, BSO612, BMS632X, BMS755, BOSE45X, BOSE63X, BOSE63W, BOSE65B/W, BOSE65X, BOSE633W, BOSE633X, BOSE635W, BOSE635W, BOSE75X, BOSE752X, BOSE90X, BOSE902X, BOSE960X, BOSGG611X, BOSGG63X, BOSGG65X, BOSGG75X, BSO60W, BSO60X, BSO62W, BSO62X, BSO600W, BSO600X, BSP602W, BSO602X, BSO629, BSO629X, BSO631, BSO633W, BSO633X, BSO635W, BSO635X, BSO636AL, FD9045FCR, FD9045FG, FD9045FR, FD9085FX, FD9085WX, OE604GG, OE604X, OE604XP, OE606GG, OE606X, OE606XP, OE608TX, ILO60DCX.
Nova Terminal block rated at 450VAC 24Amp.
Datasheet available here.
Suitable for many modern stoves and multifunction wall ovens.
Note this part should be fitted by a licensed electrician.
