Secondhand Drawmer Quad Noise Gate - Part # DS404

$383.63
Save $111

Item No. DS404.

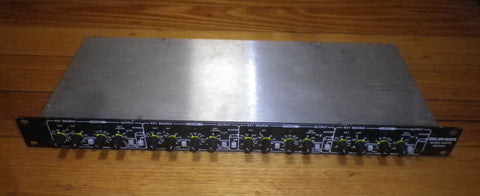

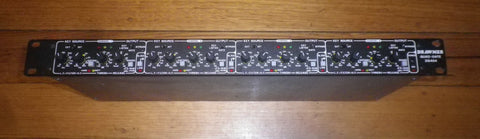

Preloved Drawmer quad noise gate unit. This item was used for approximately 3 months for a band that I accepted a mixing job with but subsequently split up.

Description:

The DS404 Quad Noise Gate has been designed to the highest specification to complement the DS201 Dual Noise Gate, acknowledged as the ‘industry standard’ gate throughout the world. Recognizing that there are many general gating applications which require equipment that is simple to operate and which occupies the minimum of rack space, Drawmer have designed the DS404 Quad Noise Gate utilizing new and unique ‘Programme Adaptive’ circuitry. This makes the DS404 ideally suited for use over a wide range of input signals, ranging from drums and other percussive instruments through to vocals, pianos and even complete mixes.

Features:-

Quad gate : Four channels of DS201 quality noise gates.
Frequency Sensitive : The provision of variable Low-Pass and High-Pass Filters allows 'without compromise' frequency selective gating. The unit can be switched for either Internal or External Key source and the KEY LISTEN facility enables monitoring of the filter setting.
Hard/Soft Gating : Each channel of the DS404 can be operated as a HARD or SOFT gate, providing quite different characteristics. Two coloured LEDs clearly indicate mode status. In the HARD mode the DS404 offers ultra-fast response time, stable triggering with complete freedom from chatter around threshold and a specialized release contour which is ideally suited to drums and other percussive material. In the SOFT mode the DS404 becomes a versatile Expander capable of handling vocals and sub mixes. Drawmer's unique 'Programme Adaptive' circuitry is used to optimise the attack time and ratio as well has having some effect on the manual release setting . A more gentle release characteristic is utilized to complement the SOFT gate.
Threshold : A fully variable threshold control provides a range from +20dB to -70dB.
Release Control : A fully variable release control is provided with times from 10 ms to 5 sec to ensure that essential envelope control is not sacrificed in exchange for an economy in rack space.
Attenuation Range : The DS404 has switchable attenuation between 90dB and 20dB to allow for applications where a complete mute is not desired.
Chain Linking : Operating the LINK control switches the channel on the right to SLAVE operation, where its gating mode, threshold and envelope characteristics are controlled by the MASTER (left) channel. Any adjacent three channels or two stereo pairs can be linked in this way for use in any conceivable situation where linking may be required.
LED Displays : Drawmer's familiar tri-colour LED display is once again utilized as the optimum method for indicating the envelope status for each channel.

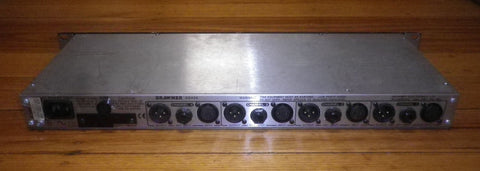

Input/Output : The DS404 is provided with balanced inputs and outputs on XLR connections.

Specifications:-

- Released in: 1997.
- Made in: UK.
- Input:
  Input Impedance: 20k Ohms or greater (Bal).
  Key Input Impedance: 20k Ohms or greater (Unbal).
  Maximum Input Level: +21dBu.
  Maximum Key Input Level: +21dBu.
- Output:
  Output Impedance: 50 Ohms (bal).
  Maximum Output Level: +21dBu.
- Bandwidth:
  <10Hz to 22KHz -1dB.
- Attack Time:
  Hard: <10µS.
  Soft: 100mS (min), 1mS (max).
- Release Time:
  Hard: 10mS (min), >5S (max).
  Soft: 100mS (min), 5S (max).
- Noise at Unity Gain:
  22Hz – 22KHz: -97dB (AV), -96dB (RMS).
- Distortion:
  @ 100Hz, Gate open with +4dBu input: <0.04%.
  @ 1kHz, Gate open with +4dBu input: <0.04%.
- Power Requirements:
  230Volt or 115V at 50-60Hz, 15VA.
- Dimensions: 482mm x 175mm x 44mm.
- Weight: 3.7kg.

Used items are still covered by our 3 month warranty, but if problems arise within the warranty period then we reserve the right to exchange it for a similar item or issue a refund if a similar item is unavailable. Return postage is at the buyers expense. It is guaranteed to be in full working condition at the time of purchase and remain so for a period of 3 months from the date of purchase but the warranty does not cover appearance defects or other marks as a result of being used that do not directly affect it's operation. The warranty also does not cover damage or breakages after it has been fitted and used. We should be made aware of any substantial problem that may not be considered satisfactory as soon as the item is received.
